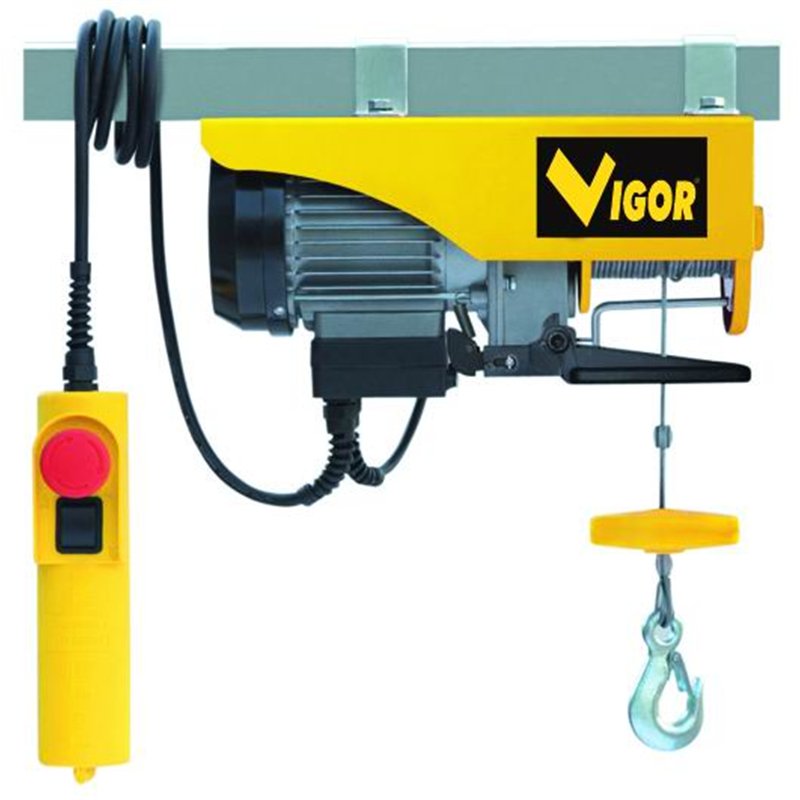

VIGOR ART.200/400 electric hoist

The VIGOR ART.200/400 is an electric hoist designed for the vertical lifting of materials in workshops, warehouses, maintenance areas and construction environments.

It can operate with a 200 kg single-line capacity or lift up to 400 kg using the included pulley.

200 kg single line or 400 kg with pulley

The hoist can be configured according to the required lifting capacity and travel:

• Single line: 200 kg capacity with up to 12 m travel.
• Double line with pulley: 400 kg capacity with up to 6 m travel.

The pulley is included, allowing the hoist to be adapted to the weight of the load.

Ø4 mm wire rope

The VIGOR ART.200/400 uses a Ø4 mm steel wire rope with 12 m travel in single-line configuration.

When used with the pulley, the rope operates in double-line configuration, increasing capacity to 400 kg and reducing travel to 6 m.

Bracket or stand installation

The hoist can be mounted on a suitably rated bracket or supporting structure. A dedicated support or stand is also available separately.

The mounting point must always be suitable for both the hoist and the maximum load being lifted.

VIGOR ART.200/400 technical specifications

Suitable applications

The VIGOR ART.200/400 is suitable for the vertical lifting of materials and equipment where greater capacity is required than with the ART.125/250 model.

The 200/400 kg configuration allows the user to choose between greater lifting travel and greater load capacity.

VIGOR product code: 49730-20
EAN: 8011779217508

Before use, always check the hoist mounting, the suitability of the supporting structure and the load weight. Never exceed the rated capacity for the selected configuration.
