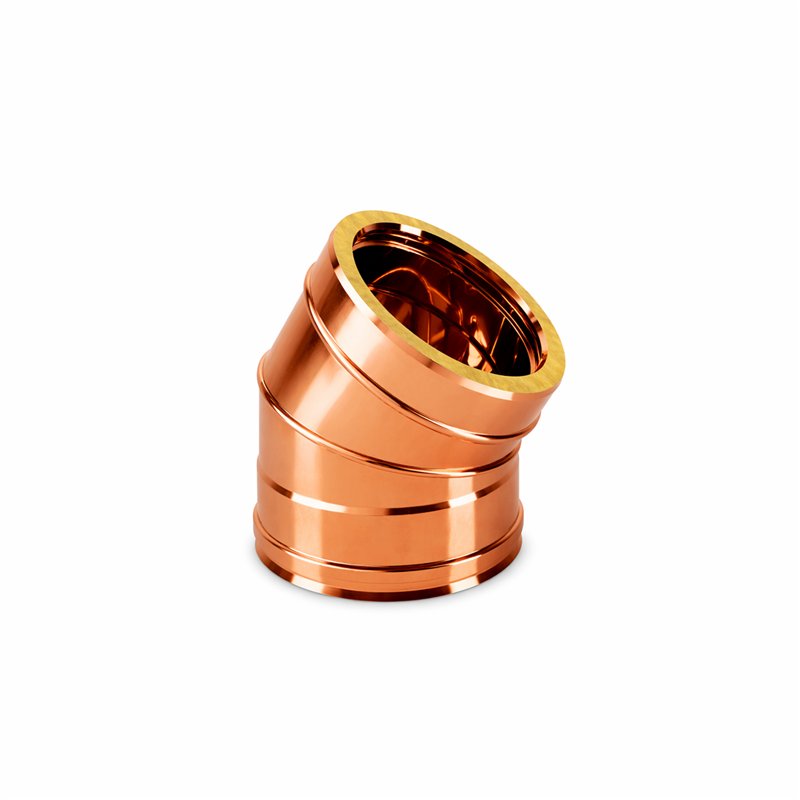

30° bend double wall flue ISO25 De Marinis Copper
30° bend double wall flue ISO25 De Marinis Copper
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Description
CURVE 30 °
COPPER CHIMNEY - DOUBLE INSULATED WALL
ISO25 COPPER SYSTEM
Iso25 Rame is the double-walled flue system insulated with 25mm of high-density mineral wool, with internal wall in AISI 316 stainless steel and external wall in NATURAL COPPER; the ideal choice for outdoor installations that combines product quality, efficiency and aesthetic value.
Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.It can be combined with any type of generator with maximum operating pressure at 200Pa or operating temperatures up to 600 ° C (wood, pellet or biomass stoves, fireplaces, ovens, kitchen hoods for domestic or industrial use, traditional or condensing gas boilers, etc.).
The whole ISO 25 Copper line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years
The 30 ° curve allows you to move both vertically and horizontally
Designation: Chimney system EN 1856-1: 2009
Temperature class: T200 (with gasket) - T600 (without gasket)
Pressure class: P1 (with gasket) - N1 (without gasket)
Condensation resistance: W (with gasket) - D (without gasket)
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: Internal wall in AISI 316 stainless steel - External wall in NATURAL COPPER
| Cod. | Øi | Øe | A | B | C | D | I | |
|---|---|---|---|---|---|---|---|---|
| Rame Naturale | R2C380 | 80 | 130 | 97 | 42 | 133 | 21 | 45 |
| Rame Naturale | R2C3100 | 100 | 150 | 100 | 45 | 139 | 23 | 45 |
| Rame Naturale | R2C3130 | 130 | 180 | 104 | 49 | 146 | 25 | 45 |
| Rame Naturale | R2C3150 | 150 | 200 | 107 | 52 | 152 | 26 | 45 |
| Rame Naturale | R2C3180 | 180 | 230 | 111 | 56 | 159 | 28 | 45 |
| Rame Naturale | R2C3200 | 200 | 250 | 113 | 58 | 163 | 29 | 45 |
| Rame Naturale | R2C3250 | 250 | 300 | 120 | 65 | 176 | 33 | 45 |
| Rame Naturale | R2C3300 | 300 | 350 | 127 | 72 | 189 | 36 | 45 |
| Rame Naturale | R2C3350 | 350 | 400 | 134 | 79 | 202 | 40 | 45 |
| Rame Naturale | R2C3400 | 400 | 450 | 140 | 85 | 214 | 43 | 45 |
| Rame Naturale | R2C3450 | 450 | 500 | 147 | 92 | 227 | 46 | 45 |
| Rame Naturale | R2C3500 | 500 | 550 | 154 | 99 | 240 | 50 | 45 |
Termini consegna materiale : 1 settimana
Garanzia: 10 Anni
Certificazione : KIWA
Product Details
R2C380
Specific References
- MPN
- R2C3
