Reduced price

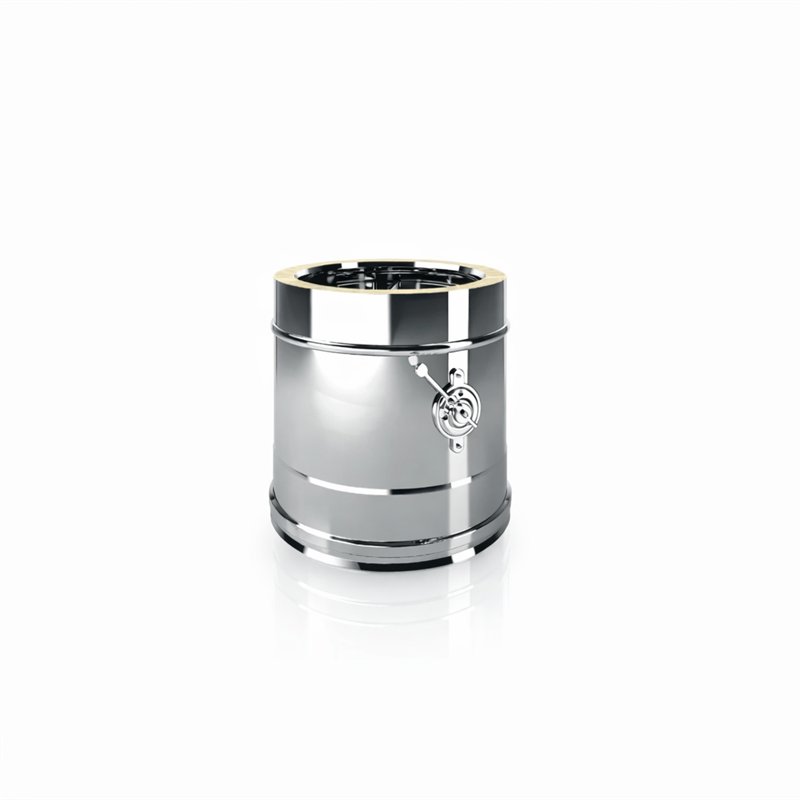

Pipe with damper I2T2S ISO25 INOX Double wall flue

Name: Pipe with damper I2T2S ISO25 INOX Double wall flue
Brand: De Marinis
SKU: I2T2S
Price: 208.51 EUR
Availability: PreOrder

Reference I2T2S80

Brand De Marinis

Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

Return policy

(edit with the Customer Reassurance module)

Description

SMOKE CALIBRATION DAMPER MODULE
STAINLESS STEEL CHIMNEY - DOUBLE INSULATED WALL
ISO25 INOX SYSTEM

Iso25 INOX is the double-walled flue system insulated with 25mm of high density mineral wool, with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability.

Mechanical joint with locking collar and possible sealing gasket (not supplied as standard), practical and compatible with all De Marinis products.

It can be combined with any type of generator with a maximum operating pressure of 200Pa or an operating temperature of up to 600 ° C (wood stoves, pellets or biomasses, fireplaces, ovens, cooker hoods for domestic or industrial use, traditional gas boilers or condensation, etc. ..).

The whole ISO 25 INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

the smoke calibration damper module, consisting of a 250mm linear element, allows adjustment and partialisation of the draft of solid fuel stoves and fireplaces; the damper does not allow total closure of the tube.

Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with seal) - T600 (without seal)

Pressure class: P1 (with seal) - N1 (without seal)

Condensation resistance: W (with gasket) - D (without gasket)

Corrosion resistance class: V2 (solid and liquid fuels)

Material type: Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

	Cod.	Øi	Øe	Hu	I
Acciaio Inox	I2T2S80	80	130	195	45
Acciaio Inox	I2T2S100	100	150	195	45
Acciaio Inox	I2T2S130	130	180	195	45
Acciaio Inox	I2T2S150	150	200	195	45
Acciaio Inox	I2T2S180	180	230	195	45
Acciaio Inox	I2T2S200	200	250	195	45
Acciaio Inox	I2T2S250	250	300	195	45
Acciaio Inox	I2T2S300	300	350	195	45
