DISEC Monolito Rok Sferik BD201-25D1 mechanical Euro cylinder protector with one-piece body and integrated escutcheon, hemispherical profile and HSS high-speed steel anti-drilling inserts. Overall dimensions 88 × 68 mm, nominal size 25 mm, 38 mm M6 fixing centres with Flex System and grub-screw adjustment. Grade 4 burglary resistance. Offered in bronze and polished brass.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
The DISEC Monolito Rok Sferik BD201-25D1 is a mechanical security protector for Euro profile cylinder locks, featuring a one-piece construction with integrated escutcheon and hemispherical profile. It incorporates HSS high-speed steel anti-drilling inserts, grub-screw adjustment and reinforced Flex System mounting. DISEC specifies grade 4 burglary resistance.

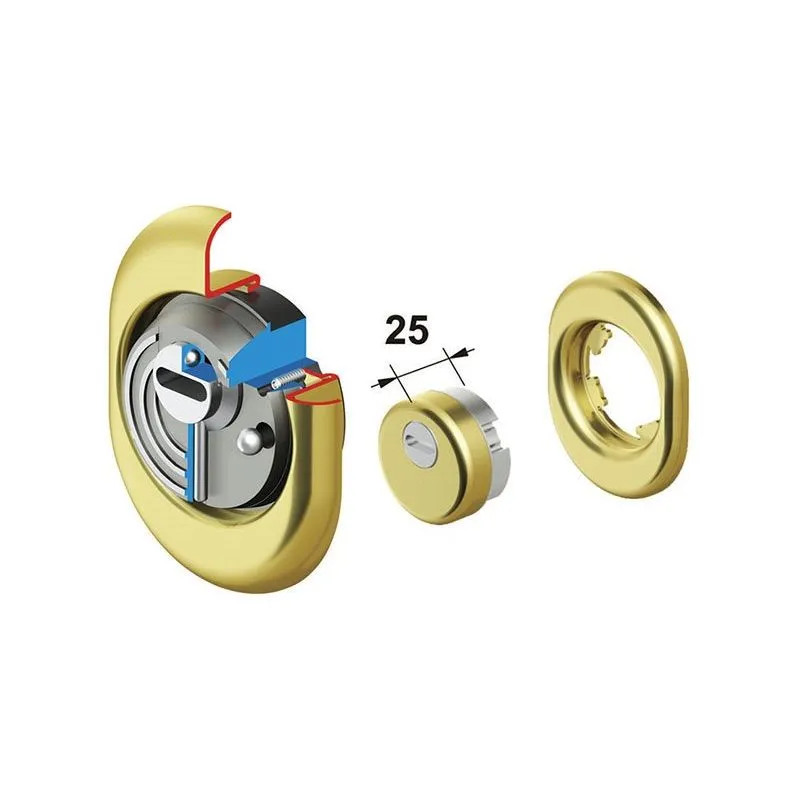

The one-piece construction integrates the protector and external escutcheon, eliminating the need for a separate decorative escutcheon. The hemispherical profile reduces accessible gripping surfaces for tools used during forced-entry attempts.
HSS high-speed steel inserts enhance resistance to drilling attempts. Grub-screw adjustment allows the assembly to be adapted to the mounting arrangement, while the Flex System uses reinforced fixing screws to improve anchoring resistance.
| Type | One-piece hemispherical mechanical protector |
|---|---|
| Application | Euro profile cylinder locks |
| Overall dimensions | 88 × 68 mm |
| Circular envelope | Ø54 mm |
| Overall projection | 27 mm |
| Nominal size | 25 mm |
| Fixing centres | 38 mm |
| Fixing thread | M6 |
| Recommended panel opening | Ø55–57 mm |
| Anti-drilling inserts | HSS high-speed steel |
| Adjustment | Grub screws |
| Fixing system | Flex System |
| Burglary resistance grade | 4 |
| Orderable finishes | Bronze, polished brass |
The BD201-25D1 has 38 mm fixing centres and is intended for Euro cylinder locks with compatible mounting arrangements. When replacing an existing protector, check the fixing-hole spacing, panel opening diameter, cylinder position and external clearance required for the Monolito body.
The BD201 features the low escutcheon version. For door panels thicker than 11 mm, DISEC recommends the separate BD200 model with a taller escutcheon. A DISEC cylinder protector spacer is also listed in the Matteoda catalogue and can be ordered separately, subject to installation compatibility.
Before ordering: check the 38 mm M6 fixing centres, door panel thickness and cylinder clearance. Contact Matteoda customer service for assistance in selecting the correct version and for estimated delivery times.
