DISEC 3G2FM-25D1 MAG 3G – Magnetic Euro Cylinder Protector, 38 mm Fixing Centres
DISEC 3G2FM-25D1 MAG 3G magnetic security protector for Euro profile cylinder locks. Rotating magnetic keyhole cover, monolithic construction and anti-drilling protection. Nominal diameter Ø50 mm, height 25 mm and 38 mm M6 fixing centres. Operated by a coded magnetic key, with 2 magnetic keys included. Selectable finishes: satin chrome, bronze and polished brass.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description
DISEC 3G2FM-25D1 MAG 3G – Rotating Magnetic Euro Cylinder Protector
The DISEC 3G2FM-25D1 MAG 3G is a magnetic security protector for Euro profile cylinder locks, featuring a rotating magnetic keyhole cover and monolithic construction. Its coded magnetic key system restricts direct access to the cylinder keyway, providing an additional barrier against lock manipulation and forced-entry attempts.
MAG 3G magnetic locking system
The protector features a rotating magnetic cover which shields the keyhole when closed. The dedicated coded magnetic key unlocks the protective mechanism, allowing the standard mechanical Euro cylinder key to be inserted.
The magnetic keys are coded, with duplication subject to presentation of the ownership card. The protective device operates independently of the mechanical keying of the cylinder lock.

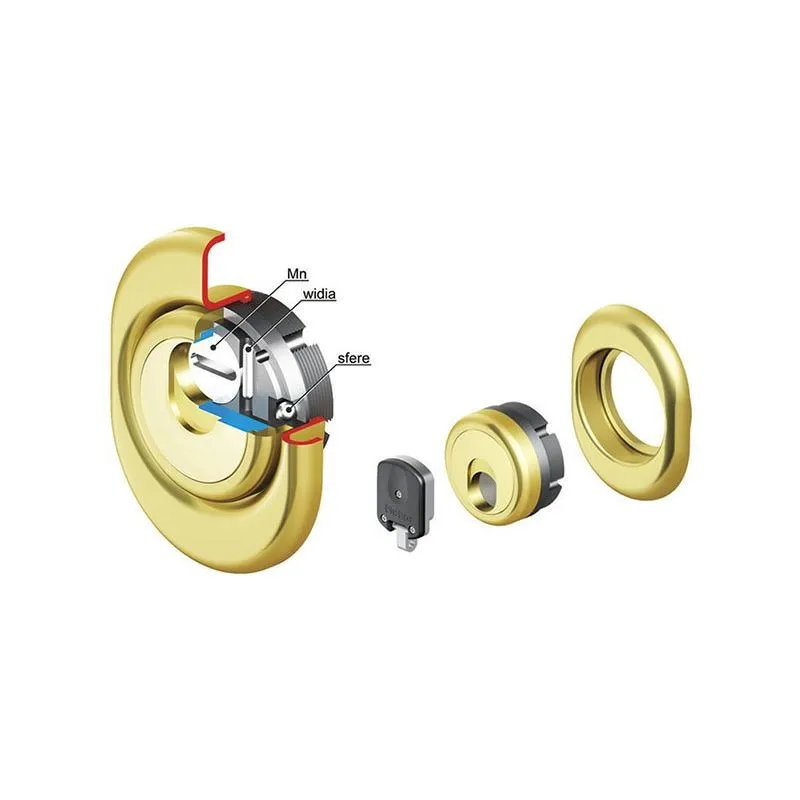

Monolithic construction and mechanical protection
The monolithic construction integrates the cylinder protector and external escutcheon, reducing accessible gripping points for tools used in removal attempts.
Anti-drilling elements on the body, fixing screws and rotor are designed to improve resistance to mechanical attacks. The magnetic locking mechanism also helps restrict access to the keyway during attempted cylinder manipulation.
Dimensions and technical specifications
| Type | Monolithic rotating magnetic cylinder protector |
|---|---|
| Application | Euro profile cylinder locks |
| Nominal diameter | Ø50 mm |
| Nominal height | 25 mm |
| Fixing centres | 38 mm |
| Fixing thread | M6 |
| Rotor configuration | D1 |
| Locking mechanism | Rotating magnetic cover |
| Anti-drilling protection | Reinforcing elements on body, screws and rotor |
| Operation | Coded magnetic key |
| Keys supplied | 2 magnetic keys |
| Selectable finishes | Satin chrome, bronze, polished brass |
Compatibility and installation
The 3G2FM-25D1 is intended for Euro cylinder locks with 38 mm M6 fixing centres. It may be suitable for compatible CISA, Cerutti, FIAM, Mottura, Securemme and TESA configurations, subject to verification of the exact lock model.
Before installation, check the fixing-hole spacing, cylinder position relative to the outer door panel, nominal protector height and escutcheon clearance. Compatibility cannot be determined from the lock manufacturer alone.
Before ordering: check the 38 mm M6 fixing centres and the correct protector height for the installed cylinder. Contact Matteoda customer service for technical assistance, magnetic key duplication information and estimated delivery times.
Product Details
708.0843145
Specific References
- ean13
- 8029470055732
