DISEC Rok Sferik BDS68D1P – Grade 4 Euro Cylinder Protector, 31 mm ATRA/DIERRE Fixing Centres
DISEC Rok Sferik BDS68D1P mechanical protector for Euro profile cylinder locks with compatible ATRA/DIERRE mounting arrangements. Hemispherical carbonitrided steel body Ø50 mm, 85 × 65 mm oval escutcheon and 31 mm M6 fixing centres. Flex System reinforced mounting and grade 4 burglary resistance declared by DISEC. Offered in bronze, satin chrome and polished brass.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description

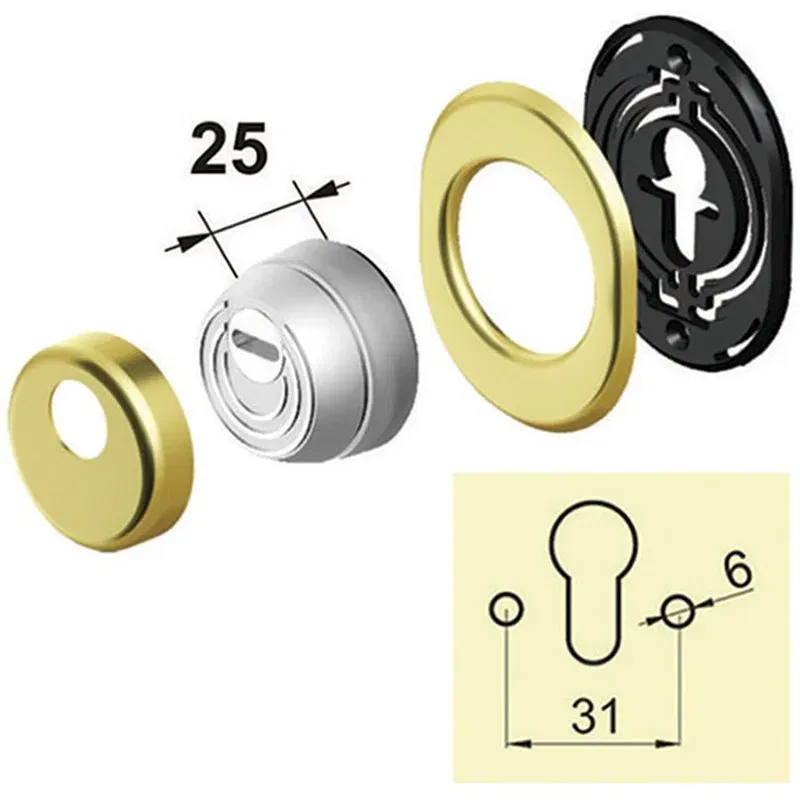

DISEC Rok Sferik BDS68D1P – Euro Cylinder Protector for ATRA/DIERRE Locks
The DISEC Rok Sferik BDS68D1P is a mechanical security protector for Euro profile cylinder locks with compatible ATRA/DIERRE mounting arrangements and 31 mm fixing centres. Its hemispherical carbonitrided steel body shields the exposed cylinder against breaking, pulling and drilling attempts. DISEC declares grade 4 burglary resistance for this protector.
Rok Sferik construction and Flex System
The hemispherical external profile reduces accessible gripping surfaces for tools used in forced-entry attempts. The carbonitrided steel construction provides mechanical protection around the cylinder while maintaining a front opening for normal key insertion.
The Flex System uses reinforced fixing screws. DISEC states that this arrangement offers up to five times the resistance of the conventional fasteners used as its reference.
Dimensions and technical specifications
| Type | Hemispherical mechanical cylinder protector |
|---|---|
| Application | Euro profile cylinder – compatible ATRA/DIERRE locks |
| Protector material | Carbonitrided steel |
| Protector diameter | Ø50 mm |
| Escutcheon height | 85 mm |
| Escutcheon width | 65 mm |
| Fixing centres | 31 mm |
| Fixing thread | M6 |
| Fixing system | Flex System |
| Burglary resistance grade | 4 |
| Selectable finishes | Bronze, satin chrome, polished brass |
Compatibility and installation
The BDS68D1P uses 31 mm fixing centres for compatible ATRA/DIERRE locks. It must not be confused with the BDS16 model, which uses 38 mm fixing centres.
Before installation, check the cylinder position and projection relative to the external door panel, the fixing-hole spacing and the escutcheon dimensions. Protector height must suit the existing lock arrangement to ensure correct key operation.
A DISEC cylinder protector spacer is listed separately in the Matteoda catalogue for mounting adjustments. Its suitability must be confirmed for the specific installation.
Before ordering: check the ATRA/DIERRE mounting arrangement, 31 mm M6 fixing centres and cylinder clearance. Contact Matteoda customer service to confirm the correct configuration and estimated delivery times.
