DISEC A2584 ribbed reinforcement plate made from 3 mm thick galvanised steel, designed for the lock area of up-and-over garage doors. Overall dimensions 420 × 300 mm, with a ribbed profile and mounting provisions. Suitable for reinforcing sheet metal around the lock or repairing damaged door panels. Check the rib geometry and fixing dimensions before ordering.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care

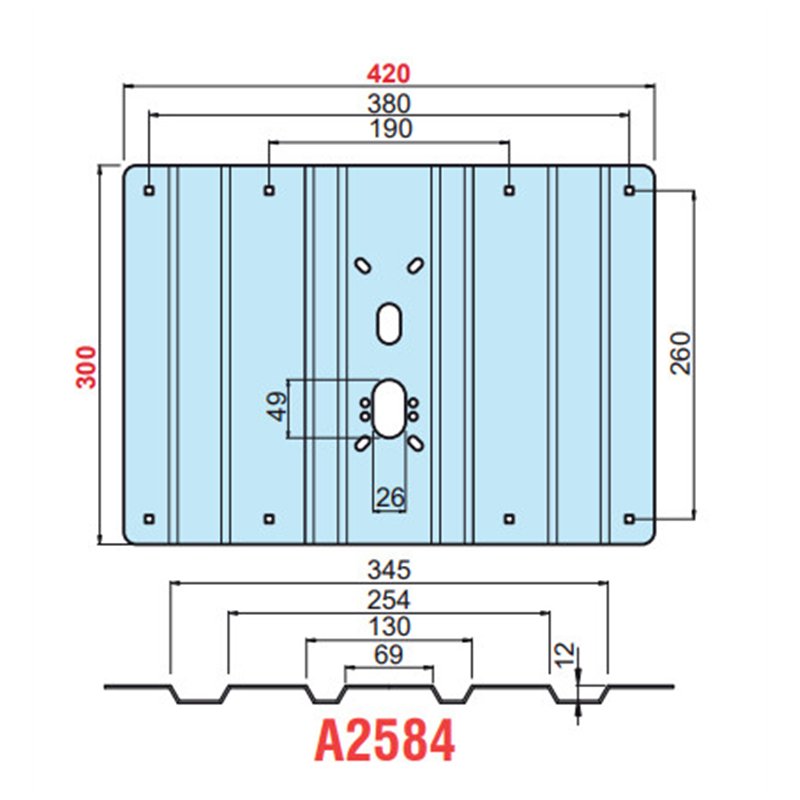

The DISEC A2584 is a ribbed galvanised steel reinforcement plate designed for the lock area of up-and-over garage doors. With overall dimensions of 420 × 300 mm and a thickness of 3 mm, it provides additional reinforcement around the locking mechanism and can be used when repairing damaged door panels.
The A2584 plate provides additional support for the sheet metal surrounding the garage door lock, helping to resist deformation and tearing during attempted forced entry.
Its ribbed profile distinguishes it from flat reinforcement plates and requires matching the plate geometry to the existing door panel. It can also be used as part of suitable repairs to damaged lock areas, following an assessment of the existing mounting points.
| Type | Ribbed reinforcement plate |
|---|---|
| Material | Galvanised steel |
| Overall width | 420 mm |
| Overall height | 300 mm |
| Thickness | 3 mm |
| Inner horizontal dimension | 380 mm |
| Inner vertical dimension | 260 mm |
| Profile | Ribbed |
| Surface treatment | Galvanised finish |
| Application | Reinforcement of garage door lock areas |
The plate features a ribbed geometry and mounting provisions that must be checked against the existing garage door. Suitability depends on door dimensions, rib arrangement and lock position.
It may be combined with a compatible cylinder protector after checking the fixing holes and available clearance. The A2584 is a reinforcement component only; the lock and cylinder protector are not included.
Before ordering: check the 420 × 300 mm dimensions, ribbed profile and mounting measurements against the existing garage door. Contact Matteoda customer service for technical assistance and estimated delivery times.
