Anti-tear plate for DISEC DN129PD-1AN overhead shutter lock
  • Anti-tear plate for DISEC DN129PD-1AN overhead shutter lock

DISEC DN129PD-1AN – Anti-Pull Cylinder Protection Plate for Garage Doors 170 × 60 mm

706.83387
DiSec

DISEC DN129PD-1AN hardened steel anti-pull protection plate for Euro profile cylinders fitted to up-and-over garage door locks. Overall dimensions 170 × 60 mm, fixing-hole centres 44 × 144 mm, M6 threads and 60 mm handle-to-cylinder centres. Designed for compatible PREFER and NEMEF lock configurations. Check mounting dimensions and cylinder projection before ordering.

€77.60
Quantity

help_outlineAsk about product
DISEC DN129PD-1AN – Anti-Pull Cylinder Protection Plate for Garage Doors 170 × 60 mm

DISEC DN129PD-1AN – Anti-Pull Cylinder Protection Plate for Garage Doors 170 × 60 mm

DISEC DN129PD-1AN hardened steel anti-pull protection plate for Euro profile cylinders fitted to up-and-over garage door locks. Overall dimensions 170 × 60 mm, fixing-hole centres 44 × 144 mm, M6 threads and 60 mm handle-to-cylinder centres. Designed for compatible PREFER and NEMEF lock configurations. Check mounting dimensions and cylinder projection before ordering.

I accept privacy policy rules

  TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

  PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

  ORDERS PREPARED WITH CARE

We prepare every order with care

Description

DISEC DN129PD-1AN – Anti-Pull Cylinder Protector for Up-and-Over Garage Doors

The DISEC DN129PD-1AN is a hardened steel anti-pull protection plate designed to protect lock cylinders fitted to up-and-over garage doors. It helps resist cylinder breaking and extraction attempts. Overall dimensions are 170 × 60 mm, with 44 × 144 mm fixing-hole centres.

Cylinder protection

The plate reinforces the external area around the cylinder, reducing its exposure during attempted forced entry.

The DN129PD-1AN is intended for compatible garage door locks fitted with Euro profile cylinders, including certain PREFER and NEMEF configurations. Lock brand alone does not establish compatibility.

Dimensions and technical specifications

Product typeAnti-pull cylinder protection plate
MaterialHardened steel
Overall height170 mm
Overall width60 mm
Vertical fixing centres144 mm
Horizontal fixing centres44 mm
Fixing threadsM6
Handle-to-cylinder centres60 mm
Upper openingØ18 mm
Stated maximum cylinder projection25 mm
Cylinder typeEuro profile, subject to verification
ApplicationCompatible up-and-over garage door locks

Compatibility and installation

Before replacing an existing cylinder protector, check the 44 × 144 mm fixing-hole centres, 60 mm handle-to-cylinder distance, cylinder geometry and available mounting clearance.

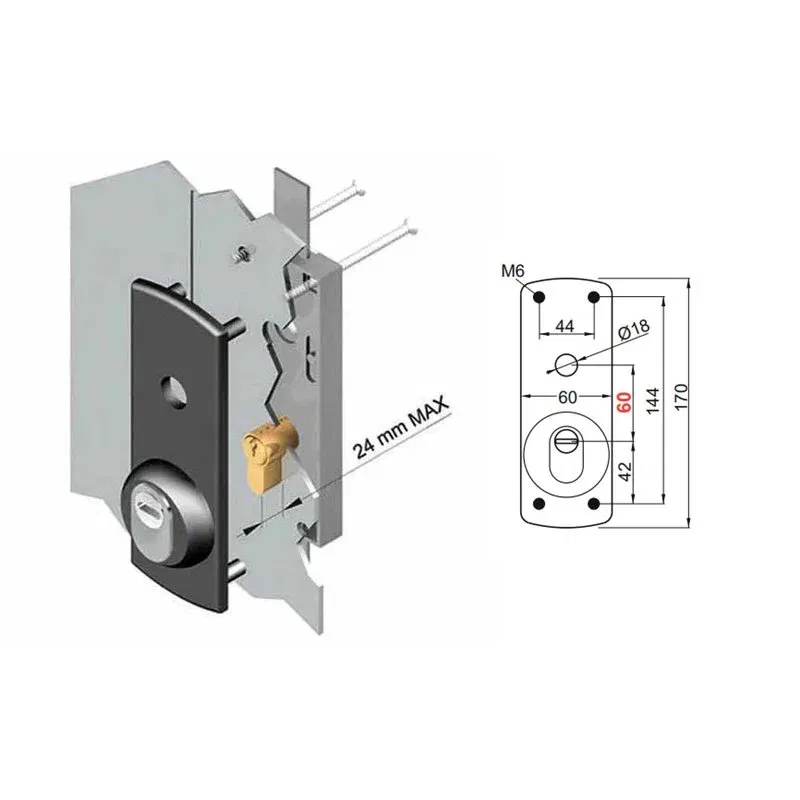

The plate is intended for certain PREFER and NEMEF lock configurations. Actual compatibility must be confirmed against the DISEC dimensioned drawing. Check the cylinder projection from the mounting surface and ensure that the key can be inserted and operated correctly.

Before ordering: verify the fixing dimensions, handle-to-cylinder spacing and cylinder projection. The product consists of the protection plate only; the lock and cylinder are not included. Contact Matteoda customer service for technical assistance and estimated delivery times.

Product Details
706.83387
8029470046785
DN129PD1AN
