DISEC MG710-Y – Magnetic Security Lock for Garage Doors and Roller Shutters
The DISEC MG710-Y is a supplementary magnetic security lock for compatible up-and-over garage doors and metal roller shutters. Its 4W magnetic system operates a double Ø22 mm locking bolt mechanism. The hardened steel body has a zinc-plated finish and supports reversible right- or left-hand installation.
Supplementary magnetic locking system
The MG710-Y provides an additional mechanical locking point for garage doors and shutters. The mechanism is operated using the corresponding DISEC KM0P85 magnetic key.
Its two locking bolts and hardened steel construction provide additional resistance at the locking point. The device supplements the existing door security arrangement and does not necessarily replace the main lock.
Dimensions and technical specifications
| Product type | Supplementary magnetic security lock |
|---|
| Model | MG710-Y |
|---|
| Magnetic system | DISEC 4W |
|---|
| Body height | 130 mm |
|---|
| Body width | 60 mm |
|---|
| Body depth | 35 mm |
|---|
| Locking bolt diameter | 22 mm |
|---|
| Bolt centres | 48 mm |
|---|
| Bolt projection | 30 mm |
|---|
| Material | Hardened steel |
|---|
| Finish | Zinc-plated |
|---|
| Installation | Reversible, right or left |
|---|
| Supplied keys | 2 KM0P85 magnetic keys |
|---|
| Application | Compatible garage doors and roller shutters |
|---|
Installation and compatibility
The MG710-Y can be fitted on either the right or left side of compatible metal doors and shutters, using suitable mechanical fixings.
Before installation, check the 130 × 60 × 35 mm body dimensions, 48 mm bolt centres, 30 mm bolt projection and alignment with the corresponding locking points. The supporting structure and mounting hardware must be appropriate for the installation.
Magnetic keys and restricted duplication
The lock is supplied with two KM0P85 magnetic keys. Additional copies require the corresponding ownership card for authorised duplication.

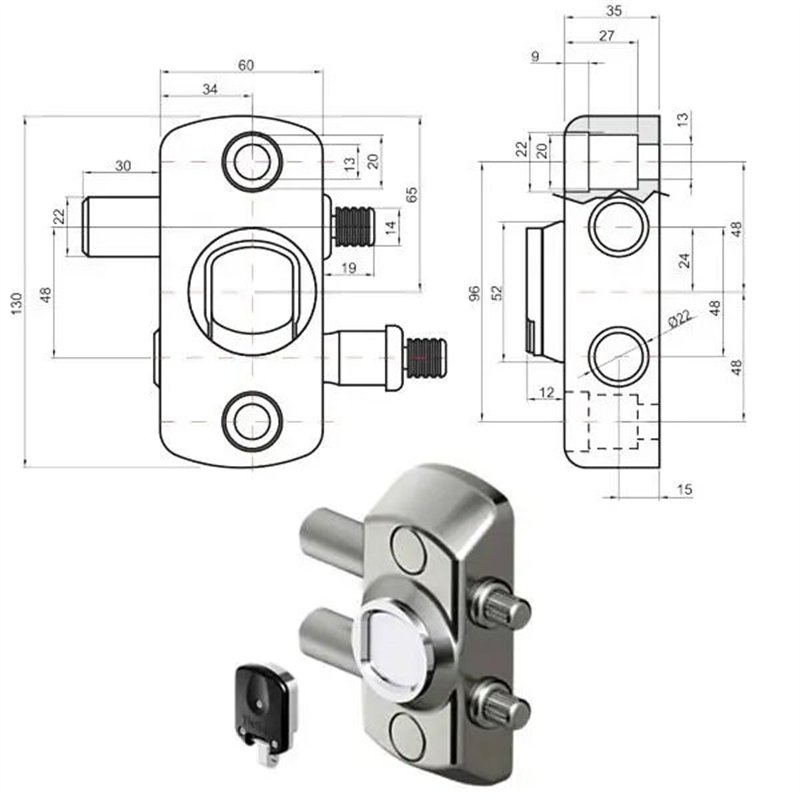

Before ordering: compare the official DISEC dimensioned drawing with the existing door or shutter, paying particular attention to the bolt centres, projection and mounting arrangement. Contact Matteoda customer service for technical assistance and estimated delivery times.
