Magnetic key protection for DISEC MG740 rolling shutter
  • Magnetic key protection for DISEC MG740 rolling shutter

DISEC MG740 – 4W Magnetic Security Protector for Roller Shutter Locks, Black

706.83392
DiSec

DISEC MG740 magnetic security protector for central locks on commercial roller shutters and garage doors. The 4W magnetic system operates a sliding cover that shields access to the lock. Steel body with manganese reinforcement and black finish. Overall dimensions 158 × 60 × 15 mm, fixing centres 39 × 139 mm and maximum cylinder projection 12 mm. Supplied with two KM0P85 magnetic keys, with restricted duplication requiring the ownership card.

€140.30
Quantity

help_outlineAsk about product
DISEC MG740 – 4W Magnetic Security Protector for Roller Shutter Locks, Black

DISEC MG740 – 4W Magnetic Security Protector for Roller Shutter Locks, Black

DISEC MG740 magnetic security protector for central locks on commercial roller shutters and garage doors. The 4W magnetic system operates a sliding cover that shields access to the lock. Steel body with manganese reinforcement and black finish. Overall dimensions 158 × 60 × 15 mm, fixing centres 39 × 139 mm and maximum cylinder projection 12 mm. Supplied with two KM0P85 magnetic keys, with restricted duplication requiring the ownership card.

I accept privacy policy rules

  TRUSTED EXPERIENCE SINCE 1913

Over 100 years of experience in hardware, tools and technical products.

  PHYSICAL STORE & CUSTOMER SUPPORT

We also have a physical store in La Loggia (Turin): real people ready to help before and after your

  ORDERS PREPARED WITH CARE

We prepare every order with care

Description

DISEC MG740 – 4W Magnetic Security Protector for Roller Shutters

The DISEC MG740 is a magnetic security protector for central roller shutter locks, intended for compatible shop shutters, garage doors and metal closures. Its 4W magnetic locking system controls a sliding cover that shields the lock's key opening. Steel construction with manganese reinforcement and a black finish.

Magnetic lock protection

The DISEC KM0P85 magnetic key releases the sliding cover, allowing access to the original lock key opening. When the cover is closed, it shields the lock from direct access.

The steel body and magnetic cover provide additional protection against tampering, attempted cylinder extraction and unauthorised manipulation. The MG740 is a supplementary security device and does not replace the existing shutter lock.

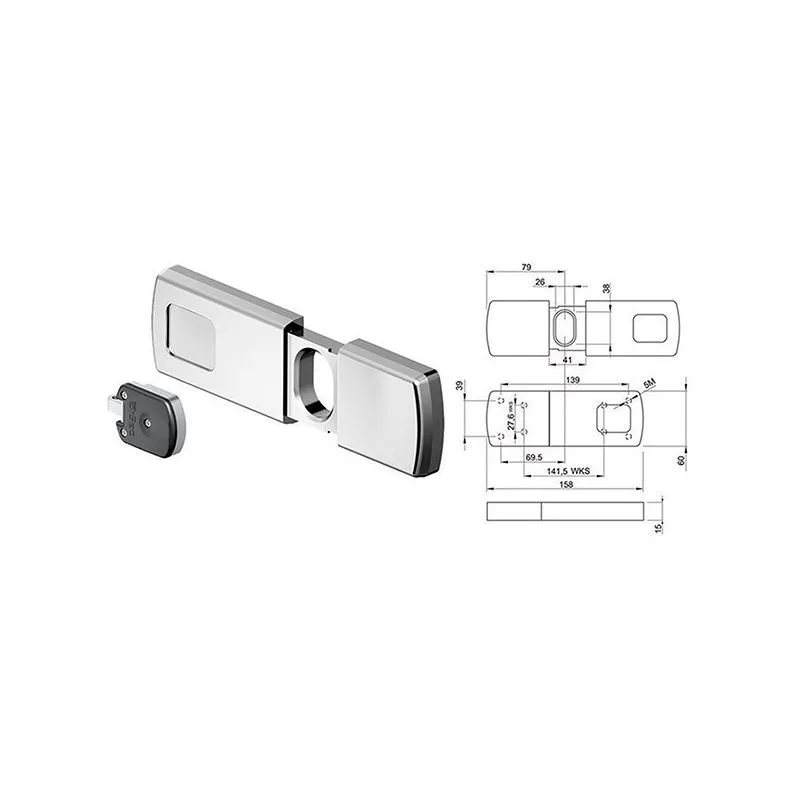

Dimensions and technical specifications

ModelDISEC MG740
Product typeMagnetic roller shutter lock protector
Magnetic system4W
Overall height158 mm
Overall width60 mm
Overall depth15 mm
Horizontal fixing centres39 mm
Vertical fixing centres139 mm
Fixing threadM6
Maximum cylinder projection12 mm
ConstructionSteel body with manganese reinforcement
FinishBlack
Supplied keys2 KM0P85 magnetic keys

Lock compatibility and magnetic key duplication

The MG740 is intended for compatible central roller shutter locks, including suitable FASEM, ISEO, PREFER, VIRO, WKS and CISA configurations. Before installation, verify the lock geometry, 39 × 139 mm fixing centres and maximum 12 mm cylinder projection.

The protector is supplied with two DISEC KM0P85 magnetic keys. Replacement key duplication is restricted and requires the corresponding ownership card.

MG740 demonstration video

Before ordering: check the fixing-hole arrangement, cylinder projection and compatibility with the existing roller shutter lock. Contact Matteoda customer service for technical assistance and estimated delivery times.

Product Details
706.83392
8029470041438
MG740FN
