DISEC A2466 flat reinforcement plate made from 3 mm thick galvanised steel, designed for the lock area of up-and-over garage doors. Overall dimensions 300 × 270 mm, with pre-drilled holes for different mounting arrangements. Suitable for reinforcing door sheet metal or repairing damaged lock areas, including installations with compatible cylinder protectors. Check dimensions and fixing positions before ordering.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
The DISEC A2466 is a flat galvanised steel reinforcement plate designed for the lock area of up-and-over garage doors. Measuring 300 × 270 mm with a thickness of 3 mm, it provides additional reinforcement around the locking mechanism and can be used when repairing damaged door panels.
The plate strengthens the garage door panel around the lock, spreading the mounting load across a wider area. It can also be used during repairs where the sheet metal around the locking mechanism requires additional support.
Its flat surface distinguishes it from DISEC ribbed reinforcement plates. The appropriate version depends on the door panel profile and the position of the existing lock.
| Type | Flat reinforcement plate |
|---|---|
| Material | Galvanised steel |
| Overall width | 300 mm |
| Overall height | 270 mm |
| Thickness | 3 mm |
| Inner horizontal dimension | 260 mm |
| Inner vertical dimension | 230 mm |
| Dimensioned hole diameter | Ø10 mm |
| Profile | Flat |
| Finish | Galvanised |
| Application | Lock area of up-and-over garage doors |
The A2466 includes mounting provisions for different fixing arrangements and can be combined with compatible DISEC cylinder protectors. Suitability depends on the door panel geometry, fixing-hole positions and location of the locking mechanism.

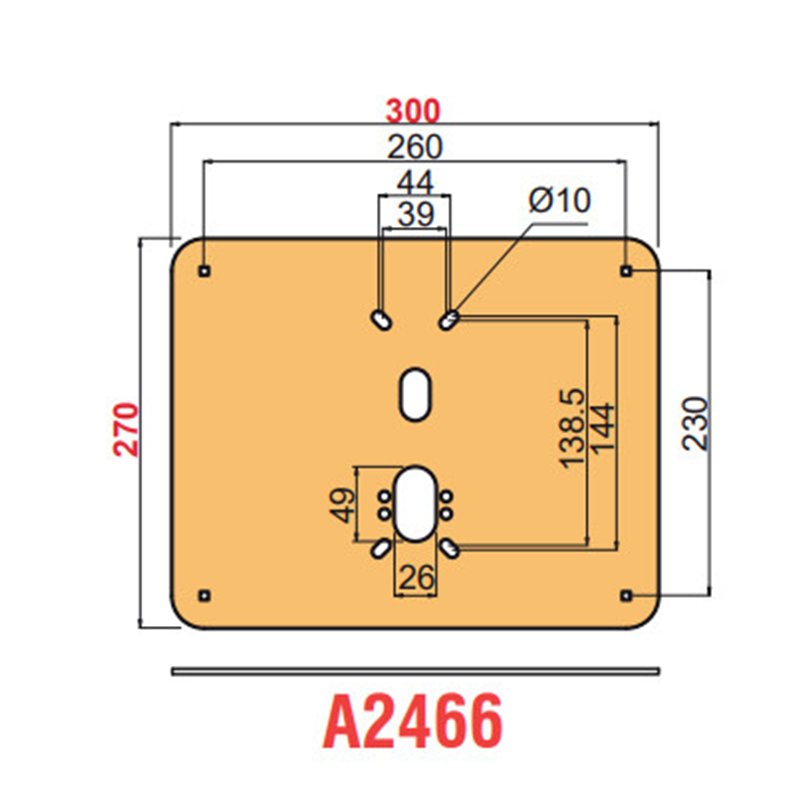

Before installation, compare the dimensioned drawing with the existing garage door. The product is a reinforcement plate only; it does not include a lock or cylinder protector.
Before ordering: check the 300 × 270 mm dimensions, flat profile and fixing-hole positions against the existing door. Contact Matteoda customer service for technical assistance and estimated delivery times.
