Anti-tear plate for swing door lock DISEC DN130PD1
    • Anti-tear plate for swing door lock DISEC DN130PD1

    DISEC DN130PD1 – Anti-Pull Cylinder Protector for Garage Doors and Shutters, 170 × 60 mm

    708.0843300
    DiSec

    DISEC DN130PD1 hardened steel anti-pull cylinder protection plate for garage door and roller shutter locks. Suitable for compatible shaped-cylinder configurations including FASEM, PREFER, ISEO and VIRO. Overall dimensions 170 × 60 mm, 39 × 139 mm fixing-hole centres, 70 mm handle-to-cylinder distance and 24 mm cylinder projection. Check dimensions before ordering.

    €69.35
    Quantity

    help_outlineAsk about product
    DISEC DN130PD1 – Anti-Pull Cylinder Protector for Garage Doors and Shutters, 170 × 60 mm

    DISEC DN130PD1 – Anti-Pull Cylinder Protector for Garage Doors and Shutters, 170 × 60 mm

    DISEC DN130PD1 hardened steel anti-pull cylinder protection plate for garage door and roller shutter locks. Suitable for compatible shaped-cylinder configurations including FASEM, PREFER, ISEO and VIRO. Overall dimensions 170 × 60 mm, 39 × 139 mm fixing-hole centres, 70 mm handle-to-cylinder distance and 24 mm cylinder projection. Check dimensions before ordering.

    I accept privacy policy rules

      TRUSTED EXPERIENCE SINCE 1913

    Over 100 years of experience in hardware, tools and technical products.

      PHYSICAL STORE & CUSTOMER SUPPORT

    We also have a physical store in La Loggia (Turin): real people ready to help before and after your

      ORDERS PREPARED WITH CARE

    We prepare every order with care

    Description

    DISEC DN130PD1 – Anti-Pull Cylinder Protection Plate for Garage Doors and Shutters

    The DISEC DN130PD1 is a hardened steel anti-pull protection plate designed to protect lock cylinders fitted to up-and-over garage doors and roller shutters. Intended for compatible shaped-cylinder configurations, it provides additional resistance against cylinder breaking and extraction attempts. Its overall dimensions are 170 × 60 mm.

    Cylinder protection and applications

    The plate reinforces the external area around the lock cylinder, helping to restrict access for tools used in pulling or breaking attacks.

    It is intended for compatible shaped-cylinder lock configurations, including certain FASEM, PREFER, ISEO and VIRO models. Suitability must be checked against the exact lock model, cylinder shape, fixing points and handle position.

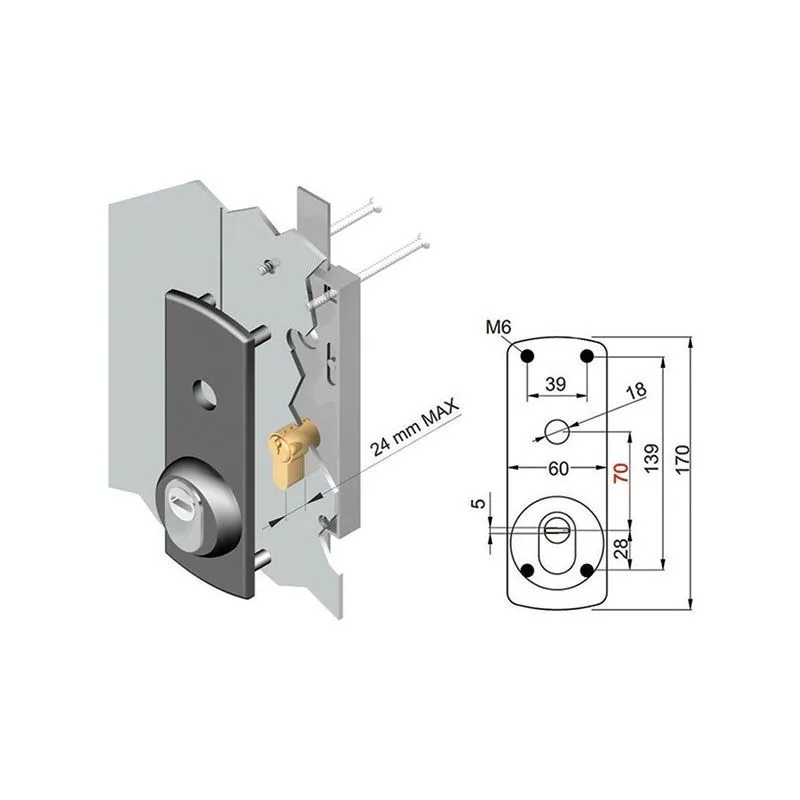

    Dimensions and technical specifications

    TypeAnti-pull lock cylinder protection plate
    MaterialHardened steel
    Overall height170 mm
    Overall width60 mm
    Vertical fixing centres139 mm
    Horizontal fixing centres39 mm
    Fixing threadM6
    Handle-to-cylinder centres70 mm
    Cylinder projection24 mm
    Rotor configurationD1
    Key opening height5 mm
    ApplicationGarage door and roller shutter locks with shaped cylinders

    Compatibility and installation

    Before replacing an existing cylinder protection plate, compare its dimensions with the lock configuration. Check the 39 × 139 mm fixing-hole centres, 70 mm handle-to-cylinder distance and 24 mm cylinder projection.

    Compatibility cannot be determined by the lock brand alone. The cylinder shape, key opening and door mounting arrangement must also be checked.

    Before ordering: carefully verify the mounting dimensions and cylinder type. Contact Matteoda customer service for assistance with the DISEC DN130PD1 and estimated delivery times.

    Product Details
    708.0843300
    8029470045443
