Colombo Design Palatino KPA12 DK/SM brass tilt-and-turn window handle from the Antologhia collection, featuring a flat-profile grip and compact backplate. Overall dimensions: 132 × 31 × 51 mm. DK / Dreh-Kipp operating mechanism not included and must be selected separately according to the window hardware. Offered in natural unlacquered brass, bronze and natural nickel finishes. Made in Italy.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care

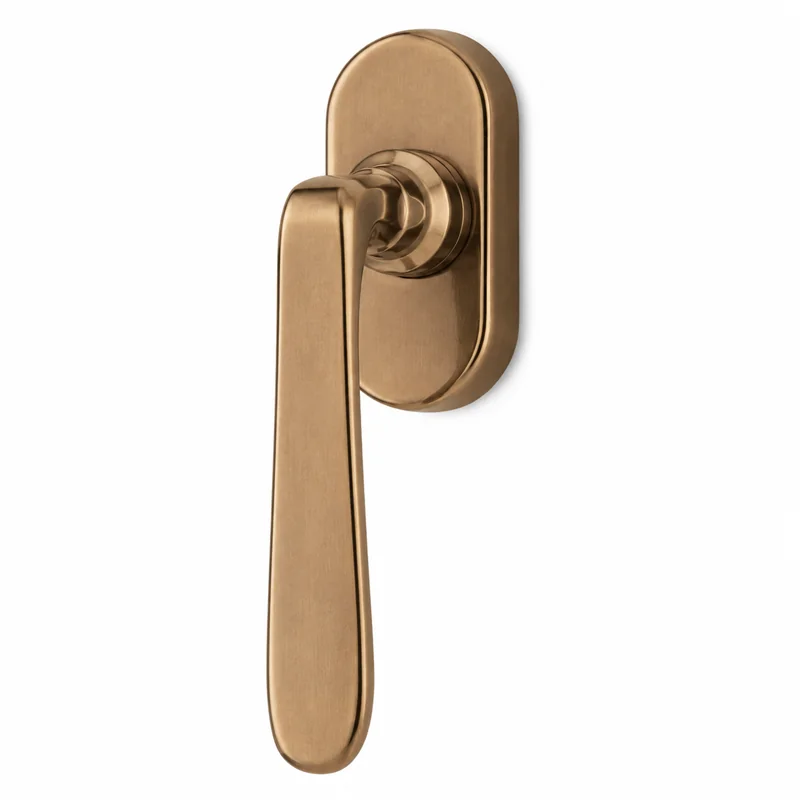

The Palatino KPA12 DK/SM is a brass tilt-and-turn window handle from the Antologhia collection by Colombo Design. It features a smooth, flat-profile grip with a rounded end, mounted on a compact backplate with curved ends.
The DK/SM configuration is intended for DK / Dreh-Kipp window systems. It differs from the traditional Palatino KPA12 and KPA12B window cremone handles, which feature an oval turning knob on an elongated vertical backplate.
The Palatino design draws on understated traditional architectural hardware, with a flat, smoothly contoured grip and rounded terminal. The DK/SM version adapts these distinctive features to tilt-and-turn window hardware.
Made in Italy using traditional brass-working methods, the Antologhia collection incorporates a significant element of manual craftsmanship and hand finishing.
| Manufacturer | Colombo Design |
|---|---|
| Collection / model | Antologhia – Palatino |
| Official product code | KPA12 DK/SM |
| Matteoda reference | 085.KPA12DK |
| Product type | Tilt-and-turn window handle on compact backplate |
| Material | Brass |
| Overall height | 132 mm |
| Backplate width | 31 mm |
| Projection shown in drawing | 51 mm |
| Mounting base height | 65 mm |
| Backplate thickness | 12 mm |
| Window operation | DK / Dreh-Kipp – tilt-and-turn |
| Operating mechanism | Not included; selected separately |
| Standard finishes | Natural brass (ON), bronze (BR), natural nickel (NI) |
| Origin | Made in Italy |
Dimensions are taken from the manufacturer's technical drawing for the KPA12 DK/SM model. Overall height of 132 mm is distinct from the 65 mm mounting base dimension.
The Palatino KPA12 DK/SM can be ordered in the following standard finishes:
Natural unlacquered finishes may gradually change in appearance through handling and ageing. Minor surface irregularities or porosity may be consistent with the traditional brass-working and hand-finishing techniques employed in the Antologhia collection.
The KPA12 DK/SM handle is offered without the operating mechanism, which must be selected separately according to the window hardware. Check the mounting dimensions, window frame preparation and tilt-and-turn mechanism requirements before ordering. Matteoda customer service can assist with mechanism selection and estimated ordering lead times.
