Corrugated plate reinforcement for DISEC A2627 450x300 overhead locks
    • Corrugated plate reinforcement for DISEC A2627 450x300 overhead locks

    DISEC A2627 – Galvanised Steel Ribbed Garage Door Reinforcement Plate 450 × 300 mm

    708.0843309
    DiSec

    DISEC A2627 ribbed reinforcement plate for up-and-over garage doors, manufactured from galvanised steel with a stated thickness of 3 mm. Overall dimensions 450 × 300 mm, featuring mounting provisions around the lock area for compatible cylinder protection systems. Designed to strengthen garage door sheet metal or support repairs to damaged areas. Check the hole layout and door profile before ordering.

    €50.60
    Quantity

    help_outlineAsk about product
    DISEC A2627 – Galvanised Steel Ribbed Garage Door Reinforcement Plate 450 × 300 mm

    DISEC A2627 – Galvanised Steel Ribbed Garage Door Reinforcement Plate 450 × 300 mm

    DISEC A2627 ribbed reinforcement plate for up-and-over garage doors, manufactured from galvanised steel with a stated thickness of 3 mm. Overall dimensions 450 × 300 mm, featuring mounting provisions around the lock area for compatible cylinder protection systems. Designed to strengthen garage door sheet metal or support repairs to damaged areas. Check the hole layout and door profile before ordering.

    I accept privacy policy rules

      TRUSTED EXPERIENCE SINCE 1913

    Over 100 years of experience in hardware, tools and technical products.

      PHYSICAL STORE & CUSTOMER SUPPORT

    We also have a physical store in La Loggia (Turin): real people ready to help before and after your

      ORDERS PREPARED WITH CARE

    We prepare every order with care

    Description

    DISEC A2627 – Ribbed Reinforcement Plate for Garage Doors 450 × 300 mm

    The DISEC A2627 is a ribbed galvanised steel reinforcement plate designed for the lock area of up-and-over garage doors. With overall dimensions of 450 × 300 mm, it provides a broad reinforcing surface and may also be used as part of a repair to damaged door panels.

    Reinforcing the lock area

    The A2627 plate is designed to strengthen the sheet metal surrounding a garage door lock. Its ribbed construction and extended surface provide additional support around the existing locking mechanism.

    It may also be used during repairs to sheet metal damaged by attempted forced entry, subject to the condition of the door and its fixing points.

    Dimensions and technical specifications

    TypeRibbed reinforcement plate
    MaterialGalvanised steel
    Overall width450 mm
    Overall height300 mm
    Nominal thickness3 mm
    Inner horizontal dimension420 mm
    Inner vertical dimension260 mm
    ProfileRibbed
    Surface treatmentGalvanised finish
    ApplicationReinforcement of garage door lock areas

    Compatibility and installation

    The plate features mounting provisions and openings around the lock area for installation with suitable cylinder protection systems. Selection must take into account the garage door dimensions, the ribbed panel geometry and the position of the locking mechanism.

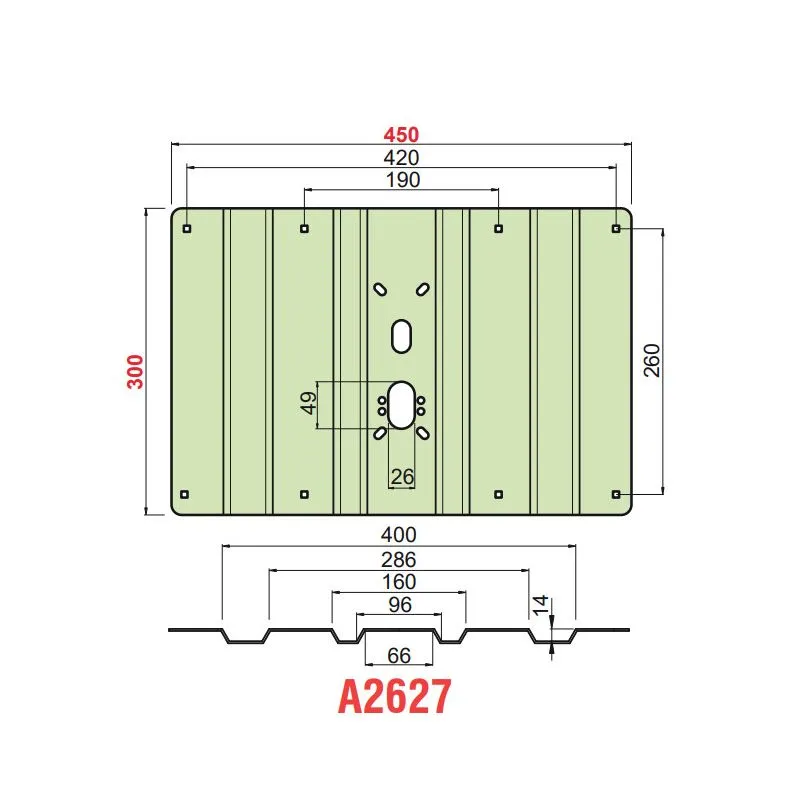

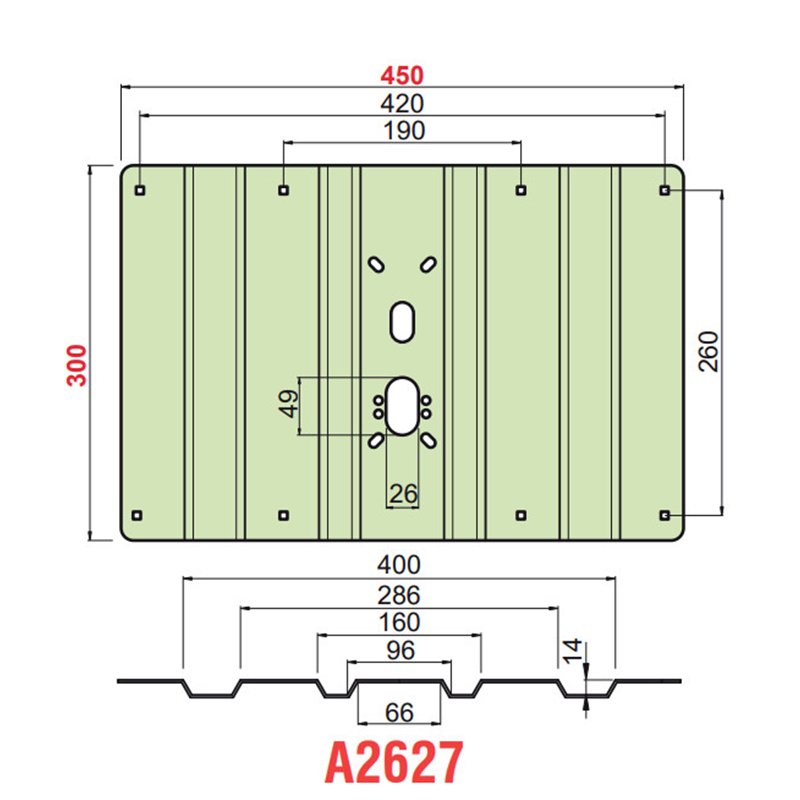

    Before installation, compare the A2627 dimensioned drawing with the existing door, checking the fixing-hole positions and clearance around mechanical components. The plate does not include a lock or cylinder protector.

    Before ordering: verify the 450 × 300 mm overall dimensions, ribbed profile and fixing-hole arrangement. Contact Matteoda customer service for technical assistance and estimated delivery times.

    Product Details
    708.0843309
    8029470048376
